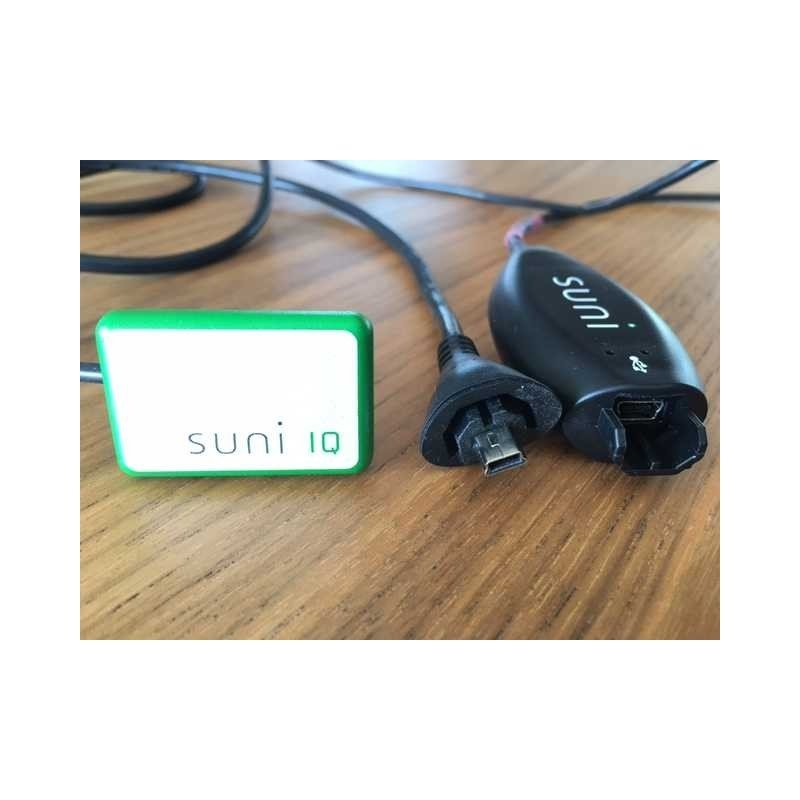

The Suni IQ epitomizes sensor technologies that are intuitive. Suni has reached the perfect blend of superb image quality, increased durability, minimal radiation exposure, and software by blending high-performance with eficiency.

Together with the Suni IQ, a whole digital radiography platform designed to seamlessly integrate with your entire practice has been created by Suni.

Features & Benefits:

• #The Suni IQ epitomizes intuitive digital sensor technology. By combining high-performance with high-efficiency, Suni has achieved the perfect blend of superb image quality, enhanced durability, minimal radiation exposure, and comprehensive software.
• #The new white face plate design provides the administrator an easy target for capturing excellent x-rays without the threat of cone cuts or user error.
• #A perfectly sized fiber optic plate further improves on our sensors' low-noise performance, ensuring a better-quality image on the initial capture and less time spent on post-capture enhancements.
• #Suni CMOS chip, specially designed scintillator screen and 1.2 mm fiber optic plate ensure a high-quality digital x-ray every time.
• #Strikes the perfect balance between high line-pairs per millimeter, signal-to-noise ratio, and low optimal radiation exposures.
• #Prof. Suni imaging software's array of preset filters and automatic image enhancements complement SuniRay2's high-quality X-rays, helping you maximize your diagnostic capabilities.
• #Sturdy and Dependable. Unique reinforced cable attachment and ultrasonically-sealed outer casing make our sensors incredibly reliable.
• #New Impact Protection Technology ensures exceptional sensor performance even when there's extra pressure or strain.
• #A smaller USB interface results in reduced size and weight providing a sleeker look and feel.
• #PX5 water test rating protects the sensor from water damage. The new Suni IQ design comes with a stronger and lighter cable that improves durability for a long-lasting experience.
• #As strong proponents of the ALARA principle (As Low As Reasonably Achievable), Suni designs its sensors to capture high-quality radiographs while maintaining the lowest radiation exposure levels among all digital sensors.
• #Optimum Patient Safety. Utilizing the low exposure levels and reduced retakes ensures a pleasant and comfortable patient experience.
• #A rounded corner and a thin design allow for easy positioning and maximal patient comfort.
• #Thin sensor head and rounded corners ensure easy and comfortable positioning.

Specifications size 1:
- Sensor Dimensions (mm) : 39.5 x 26
- Active Area (mm) : 31.1 x 20.2
- Sensor Technology : CMOS APS Fiber Plates
- Maximum Gray Levels : 4096
- Sensor Cable : Adjustable: 6 ft. or 15 ft.
- Cable Attachment : Reinforced Strain Relief
- USB Module : Integrated USB 2.0 Module with LED indicator lights     I
- Imaging Software : Prof. Suni Advanced Imaging Dr. Suni Advanced Imaging (INTL.) SuniMac (Mac-based imaging software) TWAIN-compliant software system
- Warranty : 2 Years
- PC Requirements : Minimum
- CPU Speed : 1.2 GHz Pentium 4
- Memory : 512 MB
- Operating System : Windows OS up to Windows 8 Mac OS
- Hard Disk : 40 GB
- Monitor : S-VGA with 0.28 mm dot pitch
- Monitor Settings : 16-bit color 1024 x 768 resolution
- USB Port : USB 2.0 and 3.0

Specifications size 2:
- Sensor Dimensions (mm) : 43.5 x 31.5
- Active Area (mm) : 35.2 x 26.2
- Sensor Technology : CMOS APS Fiber Plates
- Maximum Gray Levels : 4096
- Sensor Cable : Adjustable: 6 ft. or 15 ft.
- Cable Attachment : Reinforced Strain Relief
- USB Module : Integrated USB 2.0 Module with LED indicator lights     I
- Imaging Software : Prof. Suni Advanced Imaging Dr. Suni Advanced Imaging (INTL.) SuniMac (Mac-based imaging software) TWAIN-compliant software system
- Warranty : 2 Years
- PC Requirements : Recommended
- CPU Speed : 2.0 GHz Pentium 4
- Memory : 1 GB
- Operating System : Windows OS up to Windows 8 Mac OS
- Hard Disk : 80 GB
- Monitor : S-VGA with 0.25 mm dot pitch
- Monitor Settings : 16-bit color 1024 x 768 resolution
- USB Port : USB 2.0 and 3.0

Optimal Patient Comfort

Perfect Balance between Durability and Comfort
Optimum Patient Safety. Utilizing the low exposure levels and reduced retakes ensures a pleasant and comfortable patient experience.

Ergonomic Design
Rounded corners and thin design allows for easy positioning and maximal patient comfort.

Easy Positioning
Thin sensor head and rounded corners ensure easy and comfortable positioning.


Brand New In Box Suni Digital Bundle

Suni IQ Digital X-Ray Sensor Manufacturer Information

Suni IQ Digital X-Ray Sensor BROCHURE
