VECTOR MAXRAY DX3000 is lightweight and compact in size and the first portable x-ray device and one of the world’s best sellers.

DX-3000 is lightweight and compact in size. It also offers comfortable hand grip and has a well-designed shape. DX-3000 is an approved portable x-ray model with over 5,000 units already sold in the world market.

Features

• Convenient, cordless, removable battery-powered
• Great reduction of X-RAY exposure—up to 1/7 greater than that of the existing X-RAY systems
• Adopting high-frequency circuit of inverter type
• Simultaneous use of digital sensors and film
• More than 300 exposures are possible with one-time charging

Specifications

Name : Mobile X-ray System

• Classification : B Type applied part
• Tube Voltage : 60kV(fixed)
• Tube Current : 2mA (fixed)
• X-Ray Tube Focal Size : 0.8mm
• Cooling system : Oil cooling
• Total filtration : 1.5 mm Al

  (Inherent filtration : 0.8mm, fixed added filter :0.7 mm Aluminum)

• Target angle : 19 ~ 20°
• Time Set-up function : 0.05 ~ 1.35 sec (Film/Digital included)
• Source to image receptor distance : >10cm (fixed by cone)
• Size of main body : 139(W) x 163.5(H) x 66.5mm(D)
• Weight of body : About 1.8 kg (except the battery pack)


Included Accessories:

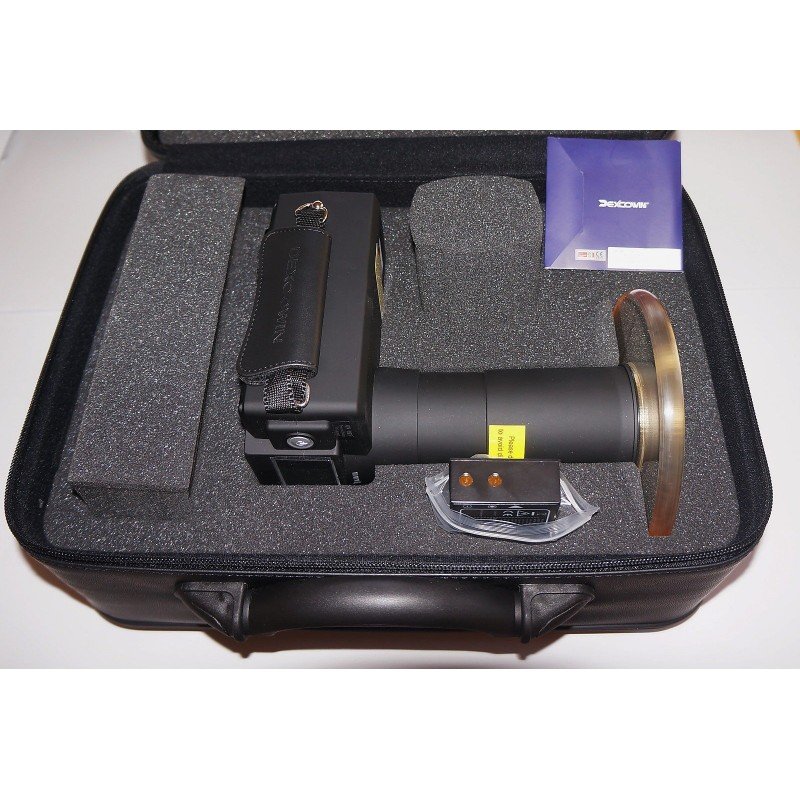

•     Max-Ray Hand Held X-Ray Unit
•     Lead Infused Plexiglass Shield
•     1 Internal Battery
•     Chargin Adapter
•     Carrying Bag
•     CD ROM
