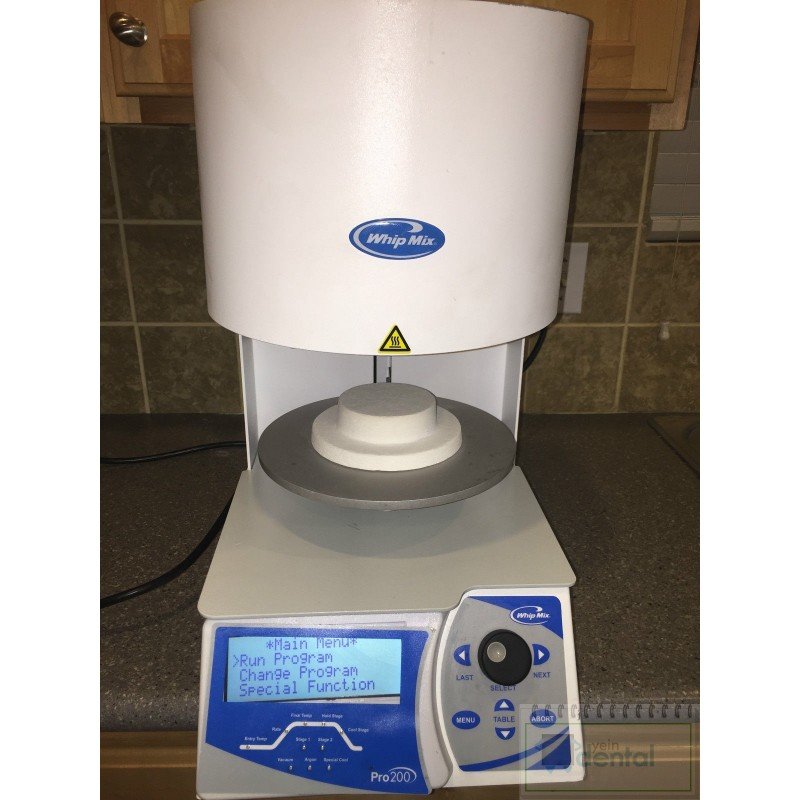

Whip Mix Pro 200 Porcelain Dental Furnace are affordable yet intelligently designed with cutting edge technology and  come standard with a Vacuum Pump and a 3-Year Warranty or 3,750 muffle hours on unit

Features:

• 200 Program Memory Expanded memory and faster logic board allows the user to use a multitude of porcelains
• Quick-Cool Jet cools the muffle twice as fast
• Pro 200 Master Suite New graph-based application that enables user to create, modify, print and transfer programs to furnaces straight from their PC.
• USB Port transfer programs and upgrades with a standard Flash Drive, (1) 4GB included.
• Larger Easy Read LCD Screen provides four lines of 20 characters
• Membrane Keys for keypad durability and less wear
• Detent Knob with Built-In Select Switch allows for faster and more convenient programming
• Improved Muffle More insulation than previous Pro Series to save energy and costs. Rated to 2200° F
• Upgraded Thermocouple for unsurpassed accuracy
• Pro Press 200 can accommodate 100 & 200 gram rings for more flexibility

Technical Specifications

Dimensions : Pro 200 : 11″W x 16″D x 21″H | ProPress 200: 11″W x 16″D x 25″H

Power Consumption  : 1200W – Furnace Alone 1400W – With Pump

Power Supply : 120 VAC ± 10% 50/60 Hz

Muffle Windings  : Quartz Tubing

Maximum Temperature : 2200ºF

Dimensions: 11"W x 16"D x 21"H
Muffle Chamber: 3 ¾” W x 2 ½” H x 3 ¾” D
Shipping Weight: 59 lbs.

Whip Mix Pro 200 Porcelain Dental Furnace MANUALS
