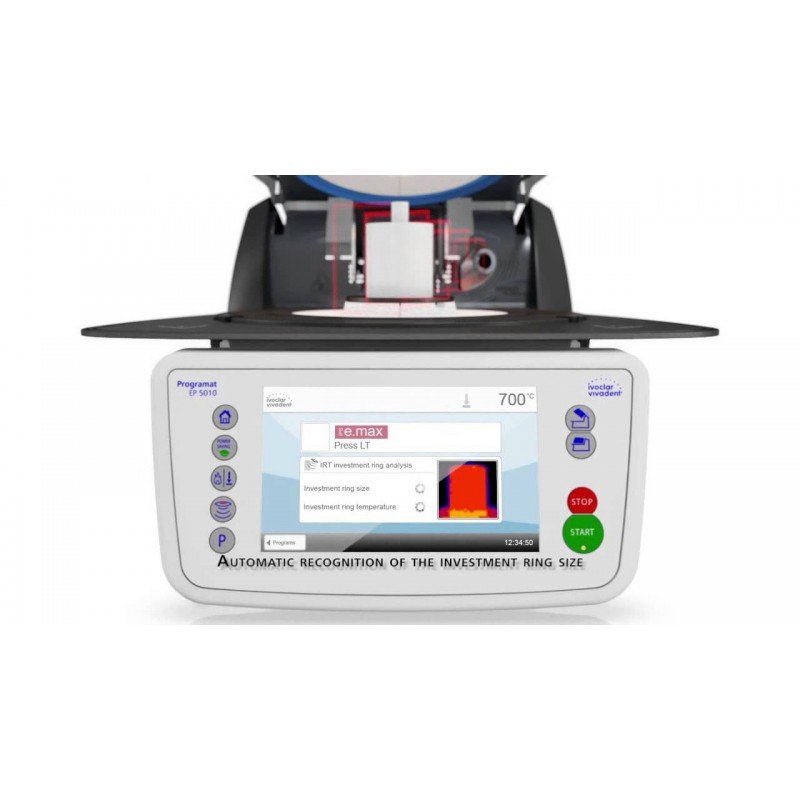

Programat EP 5010 is highly innovative and efficient furnace model optimally with premium combination furnace of the latest generation of the Programat series and may be used as both a press and a ceramic furnace

Programat EP 5010 come with infrared technology and large 7 inch colour touch display and membrane keypad. An integrated infrared heat image camera measures the temperature directly on the surface of the fired objects or the press muffle

Advantages:

•     Programat Infrared Technology recognizes the size and controls the temperature of the investment ring and ensures optimum predrying processes.
•     QTK2 muffle technology with SiC bottom reflector for homogeneous heat distribution.
•     Modern operating concept featuring a large 7-inch colour touch screen and the proven membrane-sealed keypad for easy and intuitive operation.
•     Optical status and progress display (OSD) informs the user about the current status of the furnace.
•     Electronic press drive with force sensor produces high-quality press results. No compressed air connection required.
•     Crack Detection System detects cracks in the investment ring.
•     Easy and automatic temperature calibration at two reference points (ATK2).
•     Simple software update via USB flash drive or WLAN.
•     Remote diagnosis function via data file for optimum support by a service centre.
•     Integrated multimedia functions (photo viewer, video and MP3 player).
•     Power Saving Technology for power-saving operation.
•     USB and Ethernet interfaces, SD card reader.

Technical data:

•     Power supply: 200–240 V / 50–60 Hz
•     Tolerated voltage fluctuations: ± 10%
•     Max. power consumption: 8 A at 200–240 V
•     Final vacuum: 250 W / max. leakage current 0.75 mA < 50 mbar. Only tested pumps should be used.
•     Dimensions of the closed furnace: Depth: 495 mm     Width: 320 mm / 395 mm (with cooling tray)      Height: 550 mm
•     Usable size of the firing chamber: Diameter: 90 mm     Height: 80 mm
•     Max. firing temperature: 1200 °C
•     Weight: 20.5 kg

Content of the package:

•     Programat EP 5010.
•     Power cord.
•     Vacuum hose.
•     Programat Firing Tray Kit 2.
•     Automatic Temperature Checking Set ATK2 (test set).
•     USB download cable.
•     Investment ring cooling grid.
•     Programat WLAN kit.
•     Various accessories.

MORE DETAILS : http://www.ivoclarvivadent.com/en/programat-ep-5010
